Thông tin chi tiết sản phẩm:
|
| Name: | Mini Excavator Grapple | Type: | Hydraulic Grapple Attachment |
|---|---|---|---|
| Self weight(kg): | 340 | Material: | Q345B+NM400 |
| Cylinder: | 2 pcs | Max Tilt degree(℃): | +/-45 |
| Excavator tonnage(ton): | 4~7 | Application: | ZX60 |
| Điểm nổi bật: | ZX60 Mini Excavator Grapple,Q345B Mini Excavator Grapple,2Pcs Cylinder Hydraulic Grapple Attachment |
||

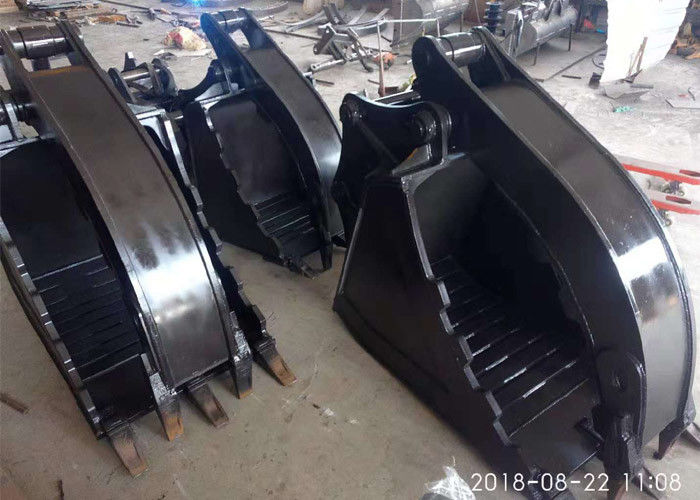

ZX60 Mini Excavator Grapple / Hydraulic Grapple Attachment 2 Pcs Cylinder
Mini Excavator Grapple featurers
The excavator grab is a special accessory for excavators, which has both digging and grabbing functions. A lot can be done without changing accessories.
The excavator bucket grab is a cylinder design, the cylinder is in the bucket, unlike other thumb grabs, the base of the cylinder is on the excavator stick.
Since the cylinder is set in the grab body, it can also be fixed with a quick connector, which is very convenient
Excavation can only be performed when the fingers are opened to the maximum opening.
Since the base does not need to be welded on the light pole, the structure of the light pole does not need to be modified, which is beneficial to maintain the original good structure of the light pole.
Mini Excavator Grapple Application excavator:
CAT CASE DAEWOO HITACHI HYDUNDAI KOMATSU SAMSUNG VOLVO KOBELCO SANY SUMITOMO KATO DOOSAN ATLAS LOVOL SUNWARD IHI
Mini Excavator Grapple Specification:
| Model | Width(mm) | Self weight(kg) | Cylinder No.(pcs) | Max Tilt degree(℃) | Excavator tonnage(ton) |
| QXD50 | 1016(40”) | 340 | 2 | +/-45 | 4~7 |
| QXD100 | 1270(50”) | 580 | 2 | +/-45 | 8~10 |
| QXD120 | 1626(64”) | 740 | 2 | +/-45 | 11~16 |
| QXD200 | 1778(70”) | 920 | 2 | +/-45 | 17~20 |
| QXD250 | 1830(72”) | 1120 | 2 | +/-45 | 21~24 |
| QXD300 | 2032(80”) | 1350 | 2 | +/-45 | 25~30 |
Our advantages:
1. Side plate and tooth plate of the excavator clamshell bucket is NM400 steel,very wearable.
2. Rotary or Non-rotary is selectable
3. Bucket size,height,weight,bucket open,shape can design according to your projects' requirements.
4. We can design and customize material Handling arm together with the Clamshell bucket grab for you.
