Thông tin chi tiết sản phẩm:
|
| Name: | Excavator Bucket Grab | Bucket width: | 1626(64”) |
|---|---|---|---|
| Bucket capacity: | 1200L | Self weight(kg): | 740 |
| Material: | Q345B+NM400 | Cylinder: | 2 pcs |
| Max Tilt degree(℃): | +/-45 | Color: | Black |
| Làm nổi bật: | excavator thumb grab,hydraulic grab bucket |
||

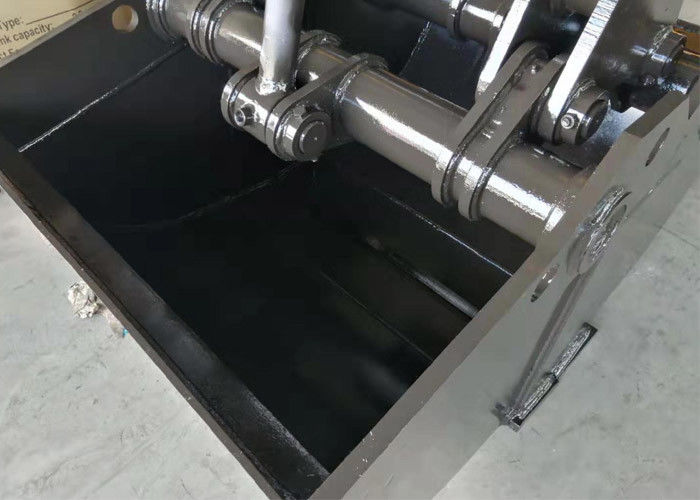

1200L Clamshell Excavator Bucket Grab Shaft Digging Easy Installation
Excavator Bucket Grab Application
Excavator requirements for rotary type: 2 way circuit plus an auxiliary for rotate.
Excavator Bucket Grab ADVANTAGE:
*There are two types of Clamshell bucket :360-degree rotating type & non-rotating type.
*High quallity:Meterial is Q460 and NM360
*Driven by double cylinder synchronously.
*Connecting part adopts direction activity joints, easy adjustment
*Flexible design, easy installation, improve the work efficiency
Excavator Bucket Grab Specification:
| Model | Width(mm) | Self weight(kg) | Cylinder No.(pcs) | Max Tilt degree(℃) | Excavator tonnage(ton) |
| QXD50 | 1016(40”) | 340 | 2 | +/-45 | 4~7 |
| QXD200 | 1778(70”) | 920 | 2 | +/-45 | 17~20 |
| QXD250 | 1830(72”) | 1120 | 2 | +/-45 | 21~24 |
| QXD300 | 2032(80”) | 1350 | 2 | +/-45 | 25~30 |
| QXD350 | 2135(84”) | 1580 | 2 | +/-45 | 31~35 |
Above parameter is our non-rotary standard design,rotary function is selectable.
If have special design or requirements,we also can prepare for you.
Our advantages:
1. Side plate and tooth plate of the excavator clamshell bucket is NM400 steel,very wearable.
2. Rotary or Non-rotary is selectable
3. Bucket size,height,weight,bucket open,shape can design according to your projects' requirements.
