Thông tin chi tiết sản phẩm:
|
Excavator: | CAT349D | Boom Length: | 11000 mm |
---|---|---|---|
Stick Length: | 9000 mm | Bucket: | 1.2 cum rock bucket |
Max Reach: | 19600 mm | Max cut depth: | 14500 mm |
Max cut height: | 14920 mm | Fold height: | 3400 mm |
Material: | Q345B+Q690D | Color: | CAT Yellow |
Điểm nổi bật: | material handling equipment,material handling cranesnes,Dredging Work Purpose Excavator Extension Arm |
20 Meter Excavator Extension Arm 3400 Mm Fold Height Heavy Duty Dredging Work Purpose
Description:
1. We specialized in customizing all kinds of long boom for all kinds of excavators.
We have detailed dimension of this CAT349D excavator,so just give us the excavator model is ok.
2. Main sheet Material of this CAT349D excavator long reach excavator material handling boom is Q345B + Q690D,the top and bottom cover plate of boom and stick is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.
5 For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs,for this CAT349 20 meter long boom,need 2 ton extra counter weight,as customer's requirements,we do no prepare,and customer prepare it themselves
Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare
6. If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.And the attachments pipe have stop valve in both end,it's easy for replace attachments.
Specification of this 20 meter CAT349 long reach excavator Material handling arm:
Total length | 20000 mm |
Boom length | 11000 mm |
Stick length | 9000 mm |
Bucket | 1.2 cum rock bucket |
Max reach | 19600 mm |
Max cut depth | 14500 mm |
Max cut height | 14920 mm |
Folding height | 3400mm |
Material | Q345B+Q690D |
Extra counter weight | 2 ton |
As customer requirements,we do not prepre the counter weight,customer prepare it themselves
Specification:
Model | LR120 | LR200-1 | LR200-2 | LR300 | LR350 | LR400 | LR450 |
Total length (mm) | 13000 | 15500 | 18000 | 18000 | 20000 | 22000 | 24000 |
Self weight (kg) | 3000 | 4150 | 4400 | 5200 | 6000 | 6500 | 7000 |
Max cut depth (mm) |
9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
Max reach (mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23200 |
Max cut height (mm) |
11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
Folding height (mm) |
2900 | 2980 | 3040 | 3210 | 3320 | 3400 | 3430 |
Bucket capacity (cum) |
0.3 | 0.6 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
excavator tonnage (ton) |
10~15 | 16~22 | 20~24 | 25~33 | 30~36 | 35~42 | 40~50 |
Above parameter is our standard parameters,if you need special design,we can customize for you.
Application:

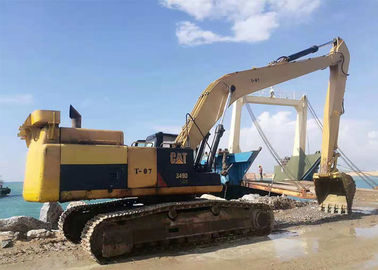

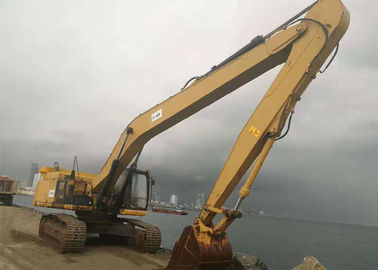

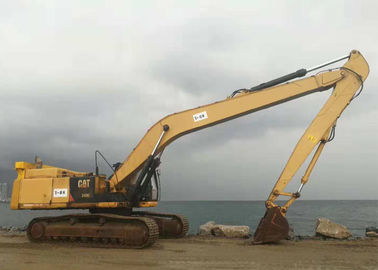

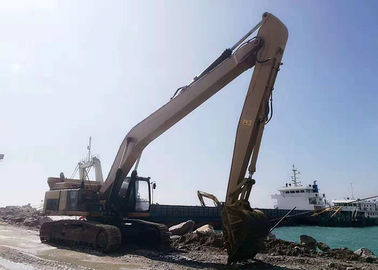

1. This kit long boom was export to Sri Lanka.
2. Customer use this 20 meter CAT349 long reach excavator Material handling arm for Anti wave dam building.
