Thông tin chi tiết sản phẩm:
|
Excavator: | Kobelco SK260 | Boom Length: | 10000 mm |
---|---|---|---|
Stick Length: | 8000 mm | Bucket: | 0.5 cum GP bucket |
Max Reach: | 17600 mm | Max cut depth: | 12200 mm |
Max cut height: | 13720 mm | Fold height: | 3210 mm |
Extra counter weight: | No need | Material: | Q345B+Q690D |
Color: | Kobelco blue | ||
Điểm nổi bật: | excavator boom stick,long reach attachments,Blue Kobelco Long Arm |

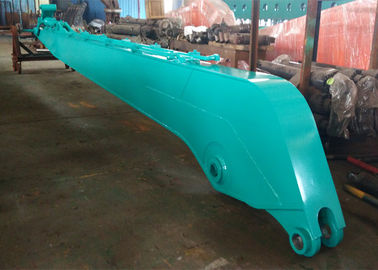

Blue Kobelco Long Arm SK260 18 Meter 3210 Mm Fold Height CE Approved With 0.5 Cum Bucket
Original excavator standard boom usually shorter with big bucket,but work range also very small range. Long reach boom excavator is larger work range,and very popular and high efficient in dredging work,dredging river,dredging sea,dredging port,etc For dredging river,the excavator usually can stay on the dam or bank of the river to complete the work. For dredging sea and port,usually need to keep excavator stay on a barge to complete the dredging.
Specification of this Kobelco SK260 long reach excavator booms:
Total length | 18000 mm |
Boom length | 10000 mm |
Stick length | 8000 mm |
Bucket | 0.6 cum GP bucket |
Max reach | 17600 mm |
Max cut depth | 12200 mm |
Max cut height | 13720 mm |
Folding height | 3210mm |
Material | Q345B+Q690D |
Extra counter weight | No need |
Dongguan Haijing Machinery Co., Ltd. is located in Dongguan, Guangdong Province, a famous manufacturing city in China. Has a large number of high-precision processing equipment, such as plasma, CNC flame cutting machine, floor milling machine, large lathe / drilling machine, etc., is one of the domestic large-scale construction machinery parts manufacturers, the main products are: excavator claws, excavator and long arm, Demolition of the arm, shortening of the arm, grasping the wood, etc. The products are sold all over the country and exported to more than 30 countries. They have provided product supporting services for many large-scale projects such as subway construction, hydropower stations, nuclear power plants, municipal projects, river dredging, and tunnel projects.
Haijin Machinery specializes in non-standard customized services. Customized products are suitable for all brands of excavators: Carter CAT, Komatsu PC, Hitachi ZX (EX), Kobelco SK, Hyundai R, Liebherr, Kato HD, Daewoo (Doosan) DH, Sumitomo SH, Case, Volvo EC, Sany, Xugong, Yuchai, Liugong, Xiagong, Longgong, Luxide, Shanzhong and so on.
"Excellence, craftsmanship" is our belief. Based on customer feedback and field visits by technicians, we continuously improve and perfect products to provide customers with the most perfect service.
Specification:
Model | LR120 | LR200-1 | LR200-2 | LR300 | LR350 | LR400 | LR450 |
Total length (mm) | 13000 | 15500 | 18000 | 18000 | 20000 | 22000 | 24000 |
Self weight (kg) | 3000 | 4150 | 4400 | 5200 | 6000 | 6500 | 7000 |
Max cut depth (mm) |
9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
Max reach (mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23200 |
Max cut height (mm) |
11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
Folding height (mm) |
2900 | 2980 | 3040 | 3210 | 3320 | 3400 | 3430 |
Bucket capacity (cum) |
0.3 | 0.6 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
excavator tonnage (ton) |
10~15 | 16~22 | 20~24 | 25~33 | 30~36 | 35~42 | 40~50 |
Above parameter is our standard parameters,if you need special design,we can customize for you.
Our service:
1. We specialized in customizing all kinds of long boom for all kinds of excavators.
We have detailed dimension of Kobelco SK260 excavator,so just give us the excavator model is ok.
2. Main sheet Material of this Kobelco SK260 excavator long reach boom is Q345B + Q690D,the top and bottom cover plate of boom and stick is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas
5. For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
Stick cylinder:Can match original stick cylinder to save cost,if you need,we also can prepare
6. If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.And the attachments pipe have stop valve in both end,it's easy for replace attachments.
Application:

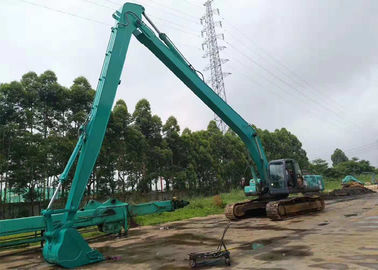

1. We customized this kit Kobelco SK260 long boom was for our domestic customer.
2. Customer use it for subway station construction

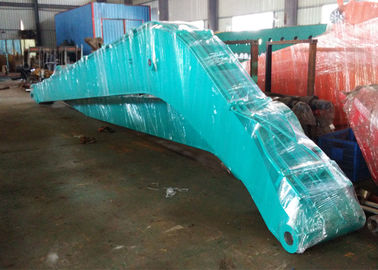

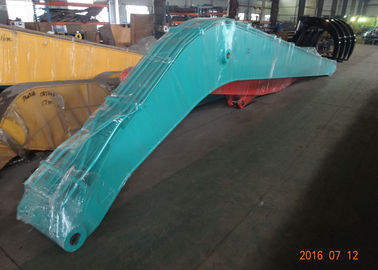

Factory picture:
